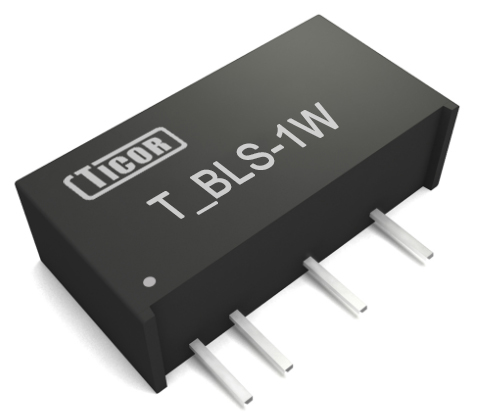

The Ticor constant voltage series products are specifically designed for applications where a set of power sources isolated from the input power source needs to be generated in distributed power systems on circuit boards. This product has high reliability, wide adaptability, excellent performance, small size, convenient and flexible use, and can meet the requirements of isolated power supply system circuit occasions. Widely used in industrial control, communication systems, instrumentation, power systems, railway systems, medical equipment, distributed power supply and other fields.
Contact information：
XI'AN WIDE BANDGAP SEMICONDUCTOR APPLICATION TECHNOLOGY RESEARCH INSTITURE CO., LTD.
Add：E Block, GLP I-PARK, Tiangu 8th Road, Hi-tech Zone, Xi'an 710077 Shanxi, China
TEL: +86-29-88251977-8018
Sales Dept: +86-135 1029 2288, +86-135 1028 2288
| Product series | Input Voltage(V) | Output voltage（V） | Output Power(W) | Packaging type | Package Size(mm) |
| T0503BS-1W | 5 | 3.3 | 1 | SIP4 | 11.60*6.00*10.20 |
| T0505BS-1W | 5 | 5 | 1 | SIP4 | 11.60*6.00*10.20 |
| T0509BS-1W | 5 | 9 | 1 | SIP4 | 11.60*6.00*10.20 |
| T0512BS-1W | 5 | 12 | 1 | SIP4 | 11.60*6.00*10.20 |
| T0515BS-1W | 5 | 15 | 1 | SIP4 | 11.60*6.00*10.20 |
| T0524BS-1W | 5 | 24 | 1 | SIP4 | 11.60*6.00*10.20 |
| T1203BS-1W | 12 | 3.3 | 1 | SIP4 | 11.60*6.00*10.20 |
| T1205BS-1W | 12 | 5 | 1 | SIP4 | 11.60*6.00*10.20 |
| T1209BS-1W | 12 | 9 | 1 | SIP4 | 11.60*6.00*10.20 |
| T1212BS-1W | 12 | 12 | 1 | SIP4 | 11.60*6.00*10.20 |
| T1215BS-1W | 12 | 15 | 1 | SIP4 | 11.60*6.00*10.20 |
| T1224BS-1W | 12 | 24 | 1 | SIP4 | 11.60*6.00*10.20 |
| T1505BS-1W | 15 | 5 | 1 | SIP4 | 11.60*6.00*10.20 |
| T1509BS-1W | 15 | 9 | 1 | SIP4 | 11.60*6.00*10.20 |
| T1512BS-1W | 15 | 12 | 1 | SIP4 | 11.60*6.00*10.20 |
| T1515BS-1W | 15 | 15 | 1 | SIP4 | 11.60*6.00*10.20 |
| T1524BS-1W | 15 | 24 | 1 | SIP4 | 11.60*6.00*10.20 |
| T2403BS-1W | 24 | 3.3 | 1 | SIP4 | 11.60*6.00*10.20 |
| T2405BS-1W | 24 | 5 | 1 | SIP4 | 11.60*6.00*10.20 |
| T2409BS-1W | 24 | 9 | 1 | SIP4 | 11.60*6.00*10.20 |
| T2412BS-1W | 24 | 12 | 1 | SIP4 | 11.60*6.00*10.20 |
| T2415BS-1W | 24 | 15 | 1 | SIP4 | 11.60*6.00*10.20 |
| T2424BS-1W | 24 | 24 | 1 | SIP4 | 11.60*6.00*10.20 |
