ES5ABF~ES5JBF

ES5ABF~ES5JBF Ultrafast Recovery Diode

FEATURES

For surface mounted applications

Low profile package

Glass Passivated Chip Junction

Superfast reverse recovery time

Lead free in comply with EU RoHS 2011/65/EU directives


MECHANICAL DATA

Case: SMBF

Terminals: Solderable per MIL-STD-750, Method 2026

Approx. Weight: 57mg/0.002oz

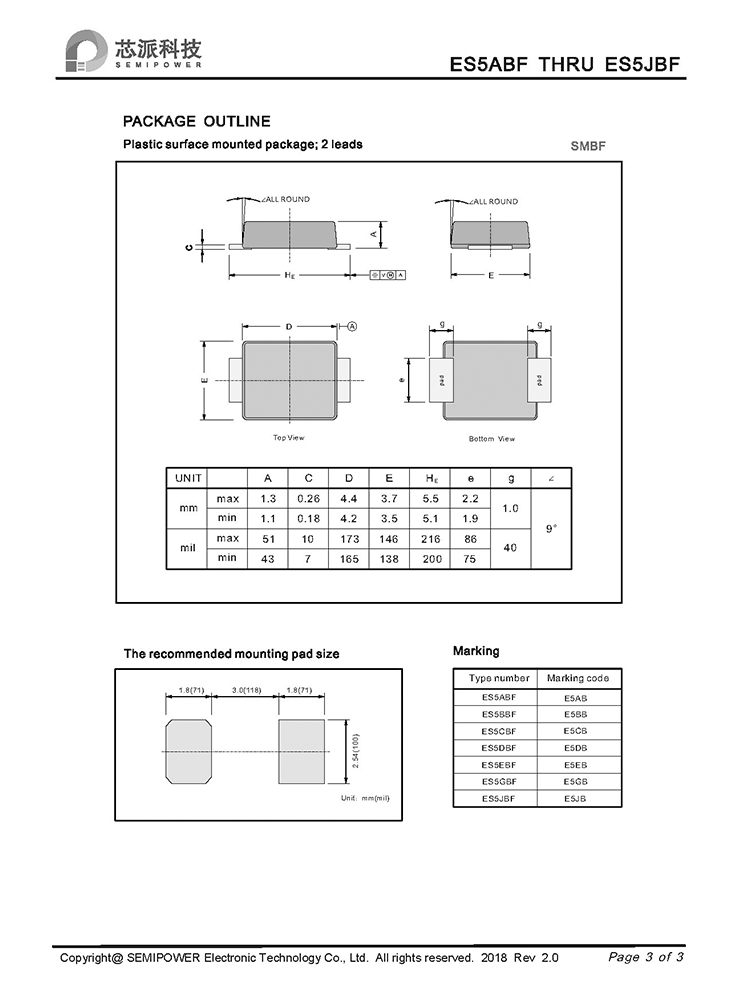

Samwin ES5ABF THRU ES5JBF

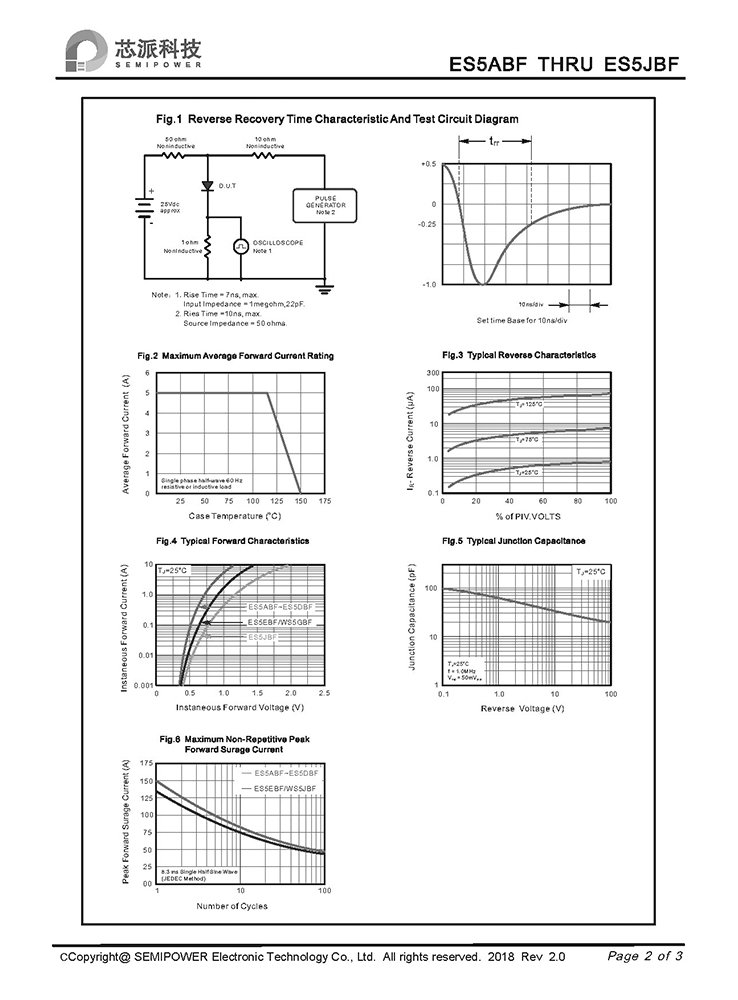

Samwin ES5ABF THRU ES5JBF

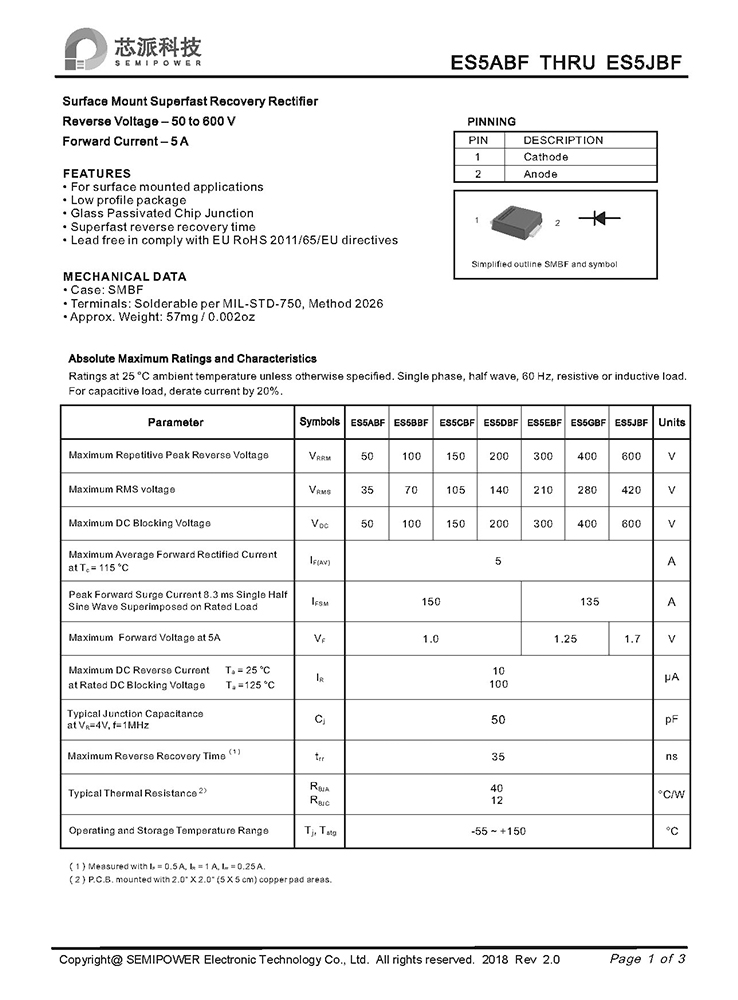

Samwin ES5ABF THRU ES5JBF
