SW35N65KL4F

SW35N65KL4F N-Channel Superjunction MOSFET

Features

  • High ruggedness

  • Low RDS(ON) (Typ 95mΩ)@VGS=10V

  • Low Gate Charge (Typ 82nC)

  • Improved dv/dt Capability

  • 100% Avalanche Tested

  • Application: LED, Charger, PC Power


General Description

This power MOSFET is produced with advanced super junction technology of SAMWIN.

This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics

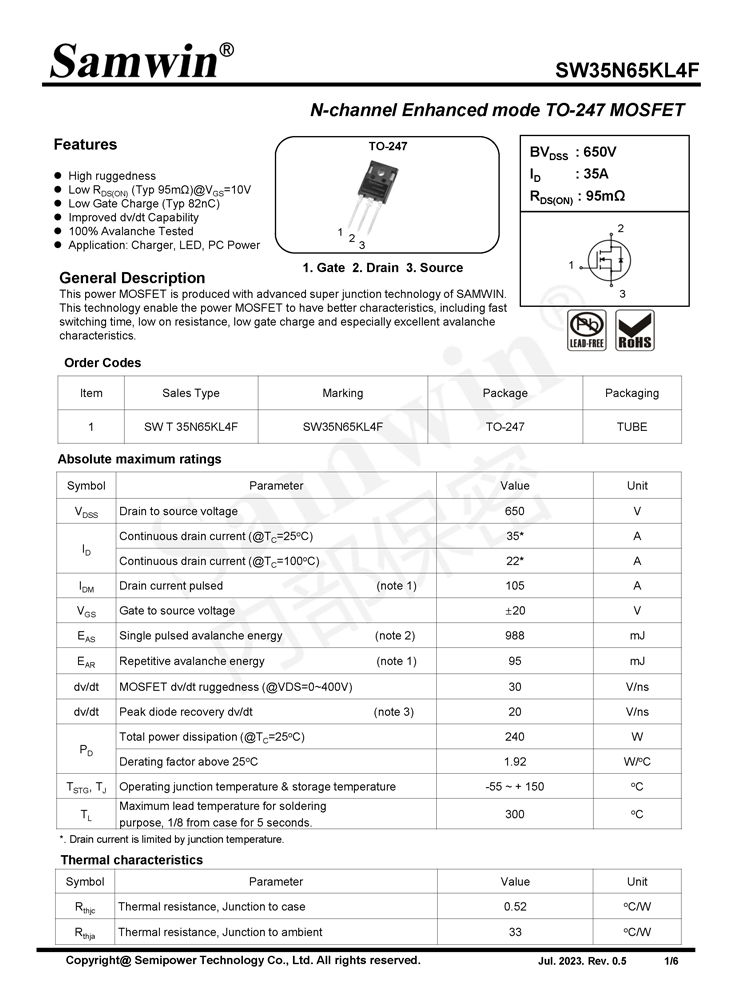

Samwin SW35N65KL4F N-channel Enhanced mode TO-247 MOSFET

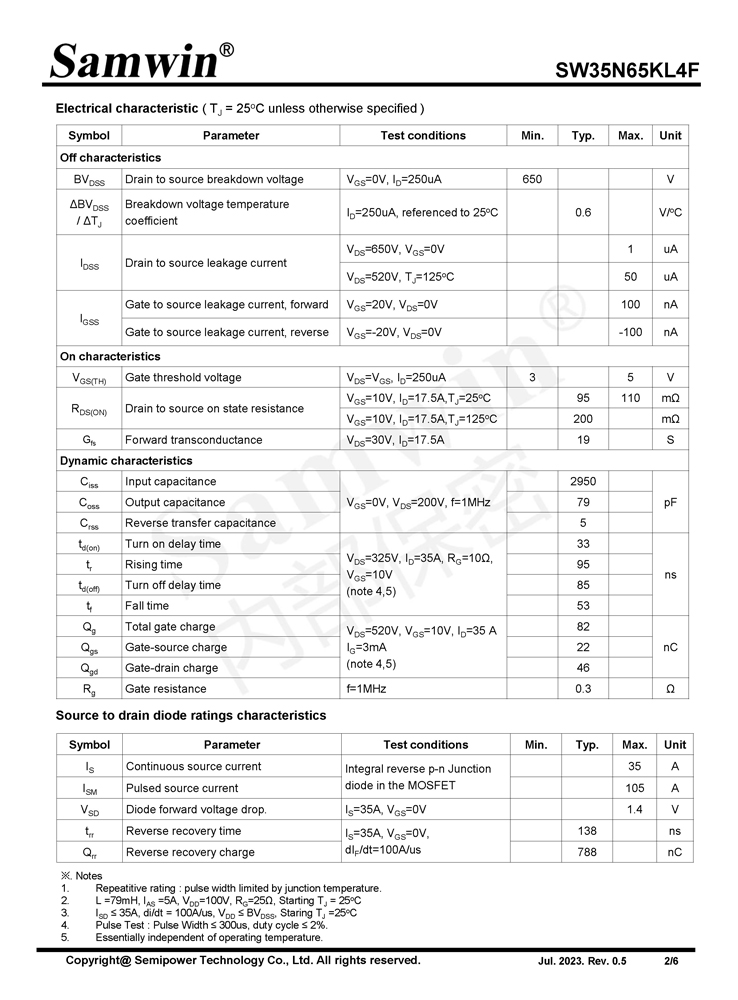

Samwin SW35N65KL4F N-channel Enhanced mode TO-247 MOSFET

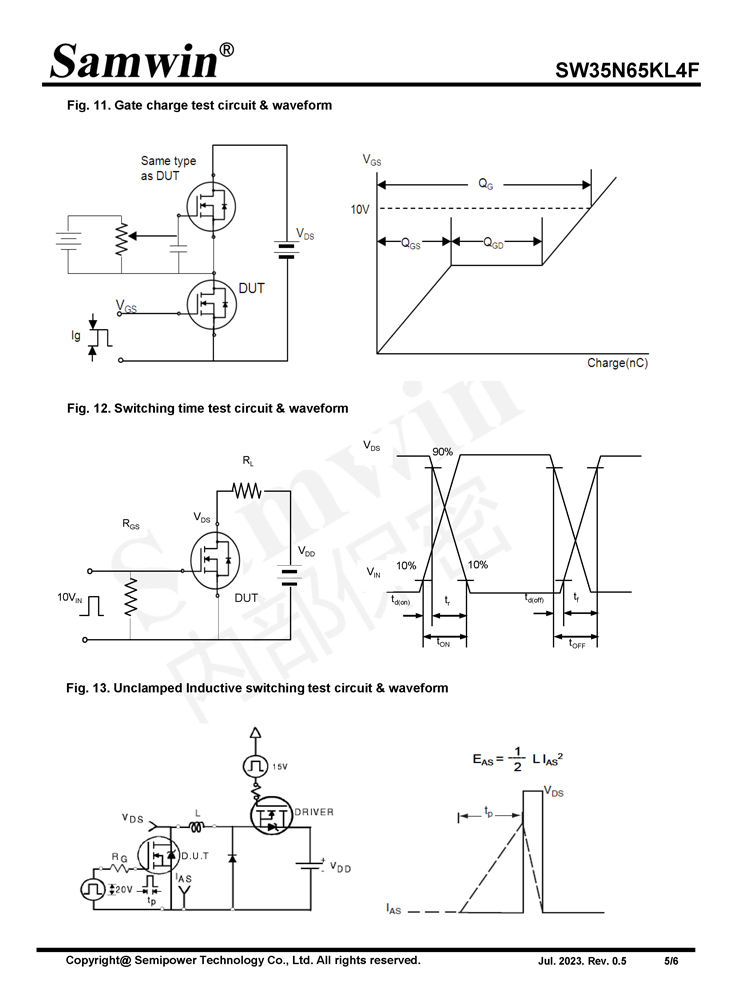

Samwin SW35N65KL4F N-channel Enhanced mode TO-247 MOSFET

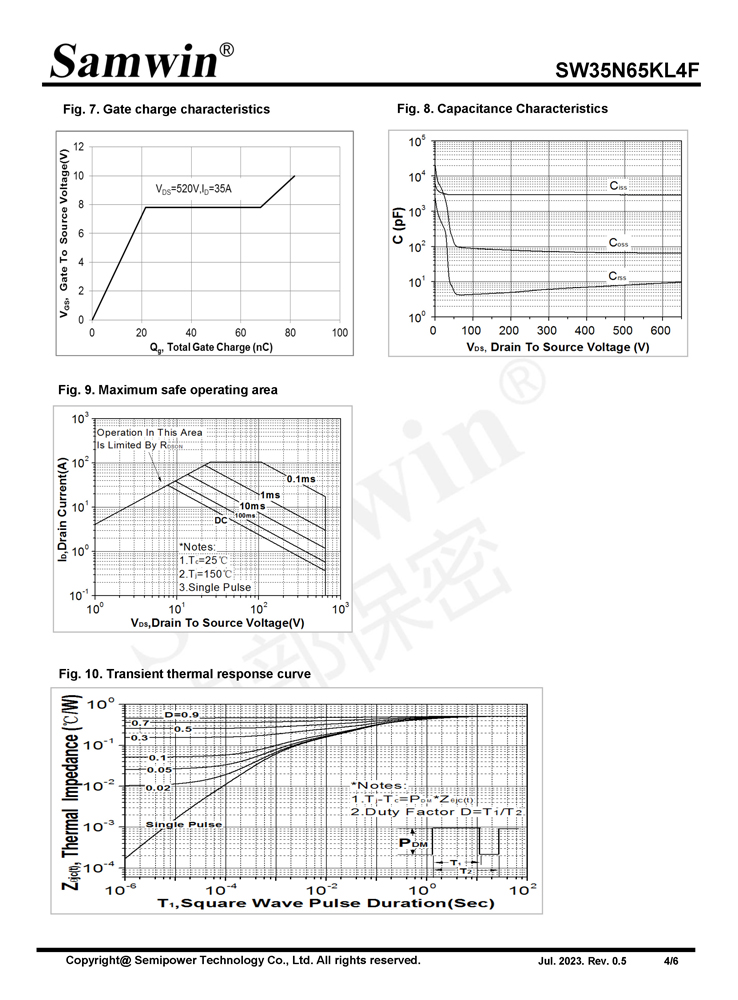

Samwin SW35N65KL4F N-channel Enhanced mode TO-247 MOSFET

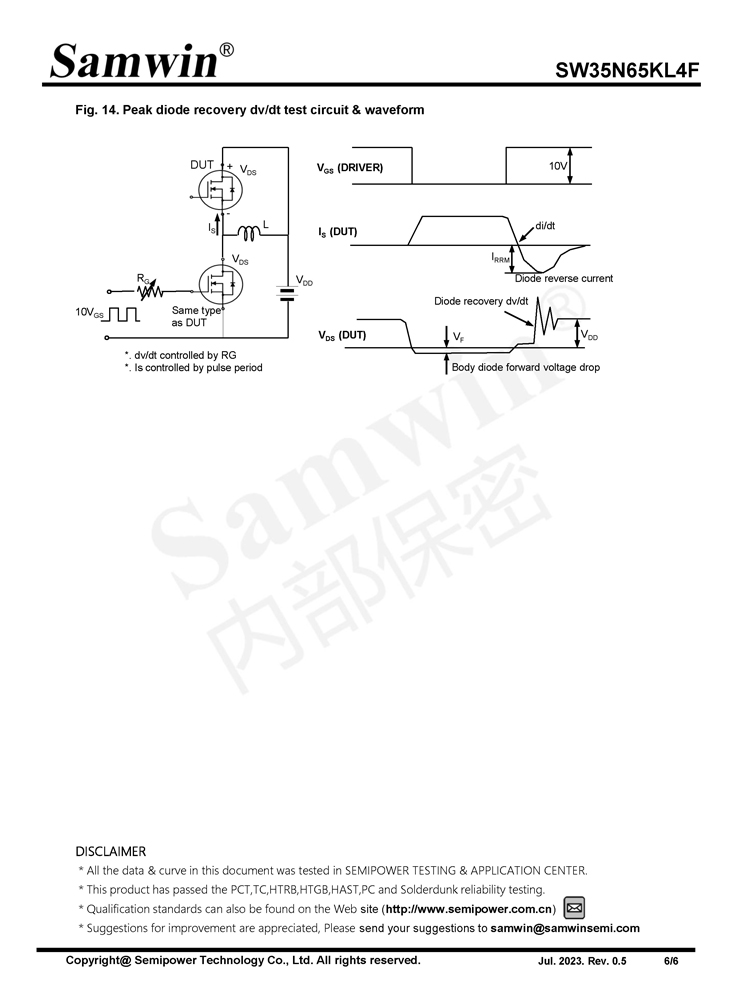

Samwin SW35N65KL4F N-channel Enhanced mode TO-247 MOSFET

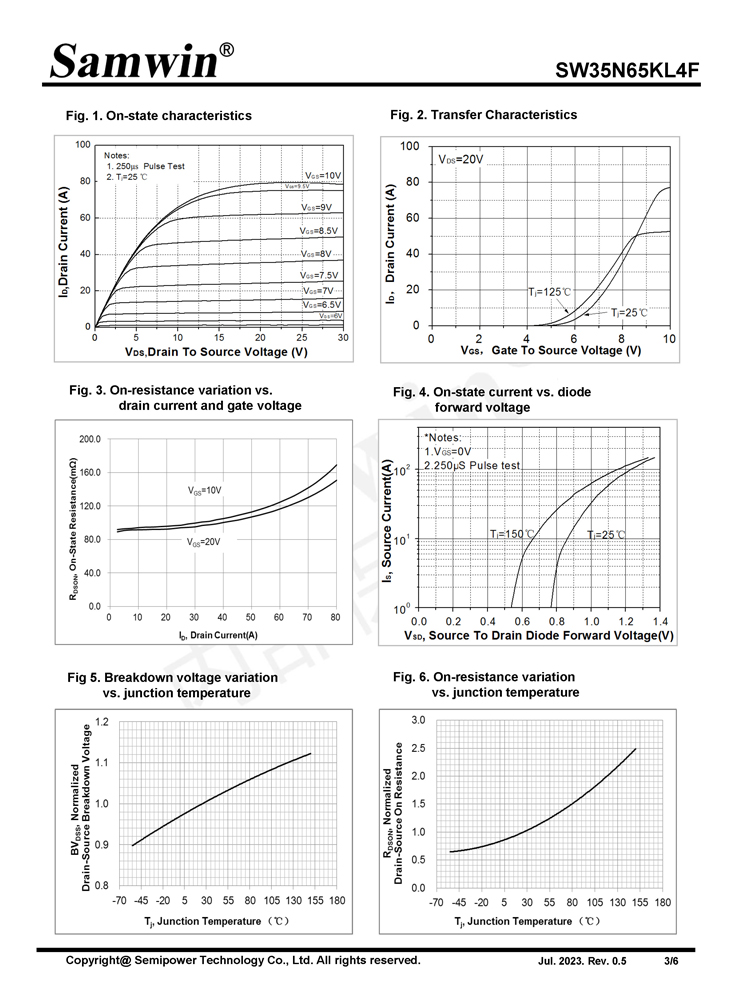

Samwin SW35N65KL4F N-channel Enhanced mode TO-247 MOSFET
