SW380P03V7T

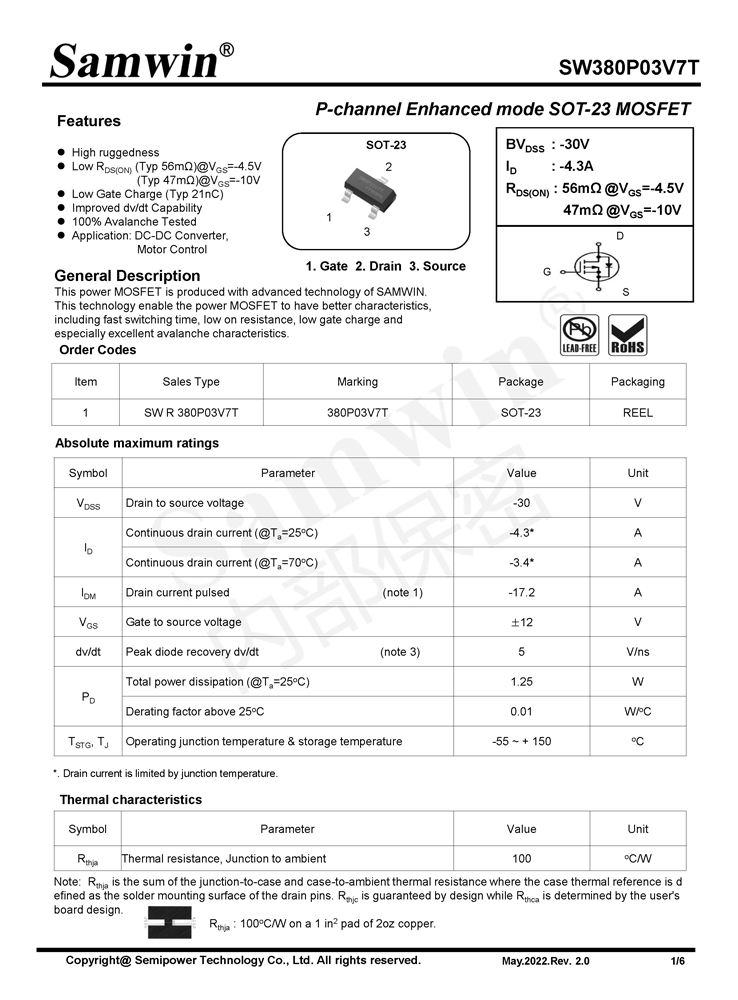

SW380P03V7T P-Channel Trench Mosfet

Features

  • High ruggedness

  • Low RDS(ON) (Typ 56mΩ)@VGS=-4.5V

                           (Typ 47mΩ)@VGS=-10V

  • Low Gate Charge (Typ 21nC)

  • Improved dv/dt Capability

  • 100% Avalanche Tested

  • Application: DC-DC Converter, Motor Control


General Description

This power MOSFET is produced with advanced technology of SAMWIN.

This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics.

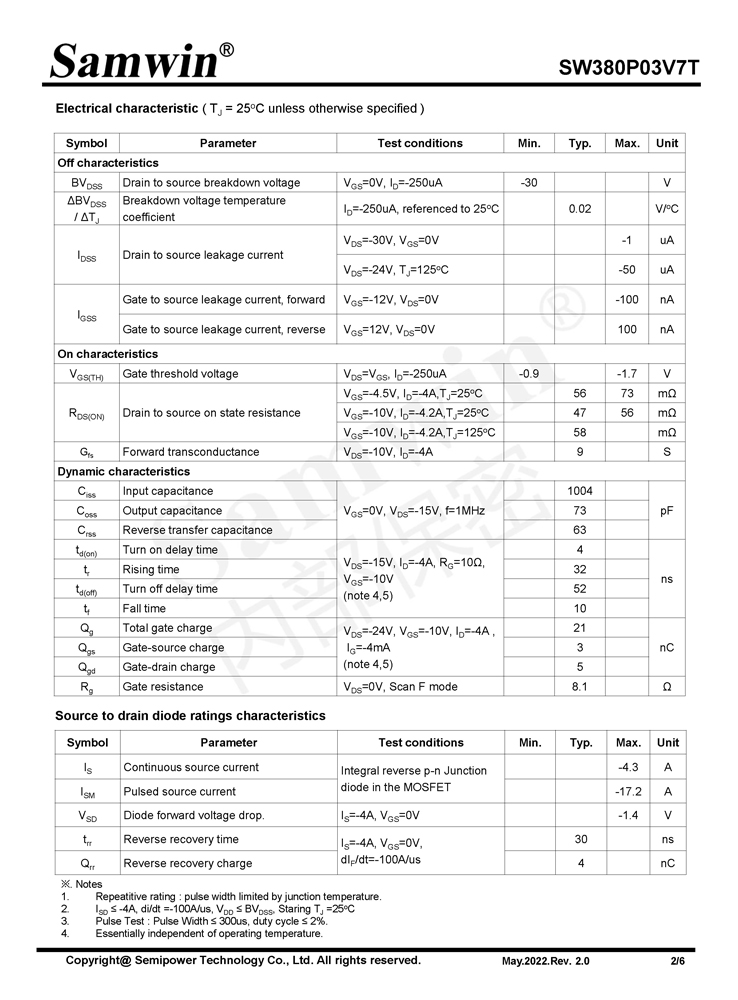

Samwin SW380P03V7T P-channel Enhanced mode SOT-23 MOSFET

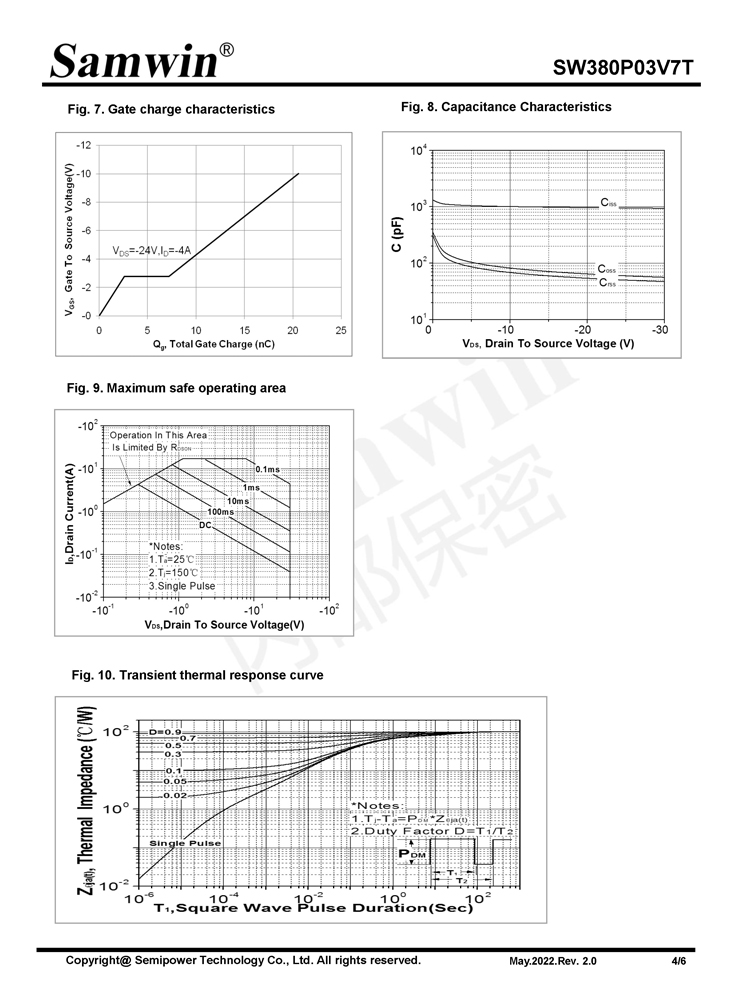

Samwin SW380P03V7T P-channel Enhanced mode SOT-23 MOSFET

Samwin SW380P03V7T P-channel Enhanced mode SOT-23 MOSFET

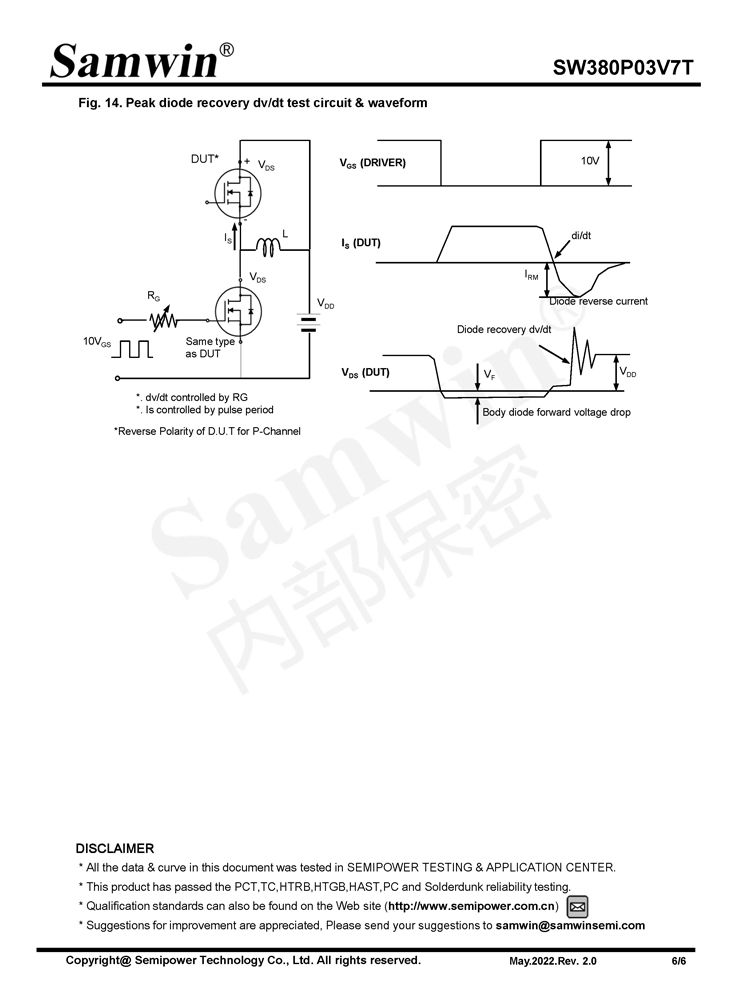

Samwin SW380P03V7T P-channel Enhanced mode SOT-23 MOSFET

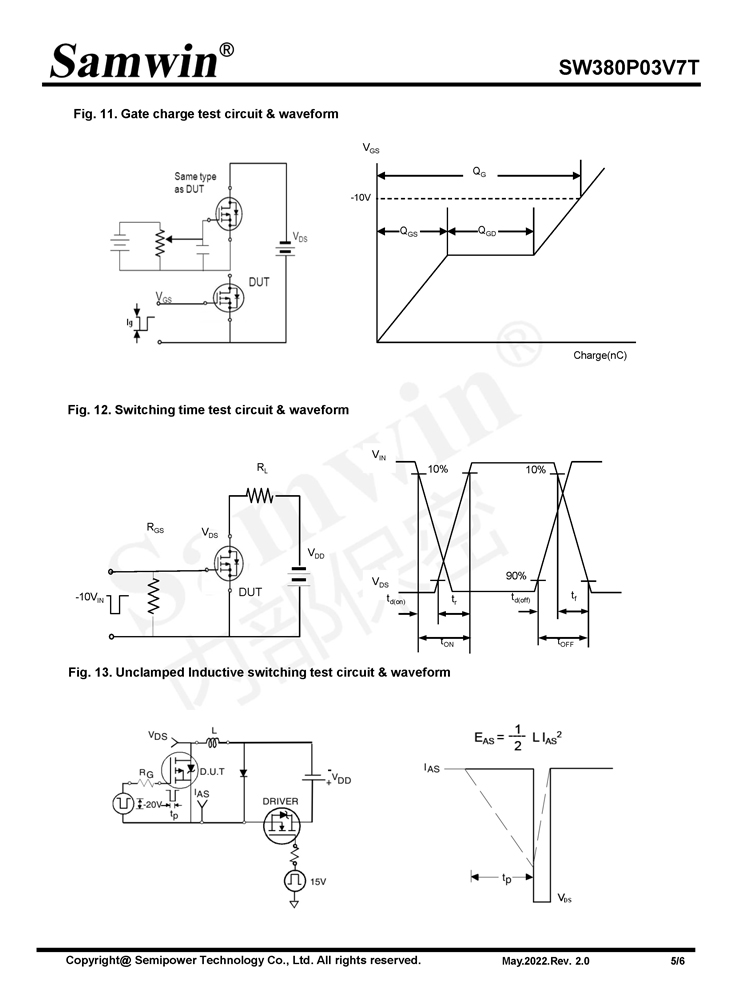

Samwin SW380P03V7T P-channel Enhanced mode SOT-23 MOSFET

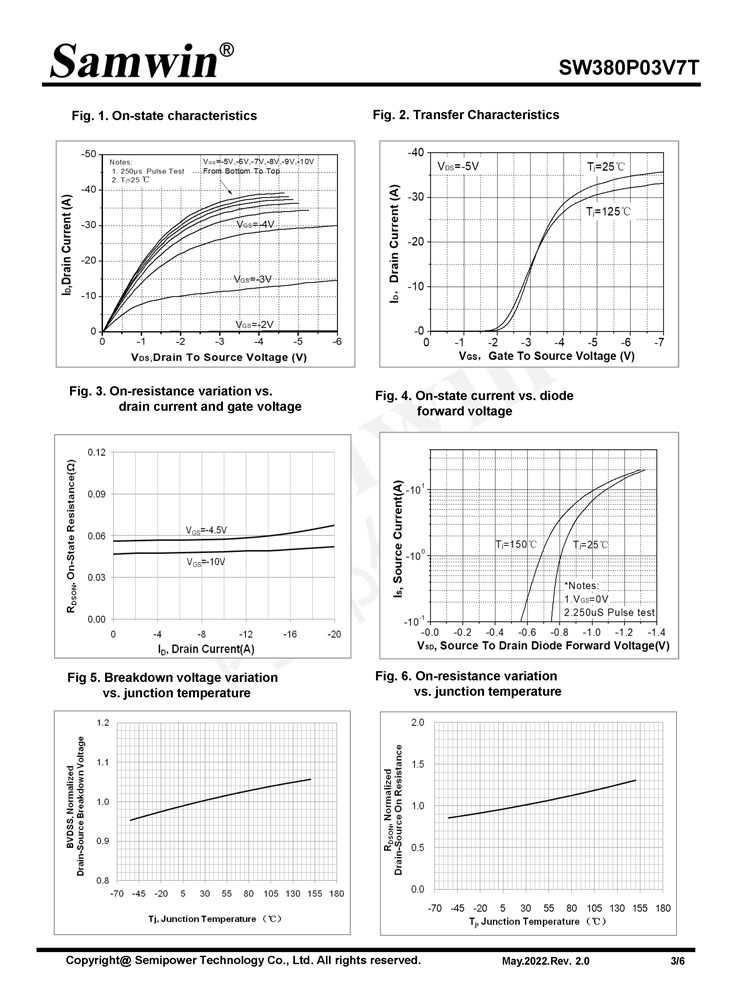

Samwin SW380P03V7T P-channel Enhanced mode SOT-23 MOSFET
