SW601Q

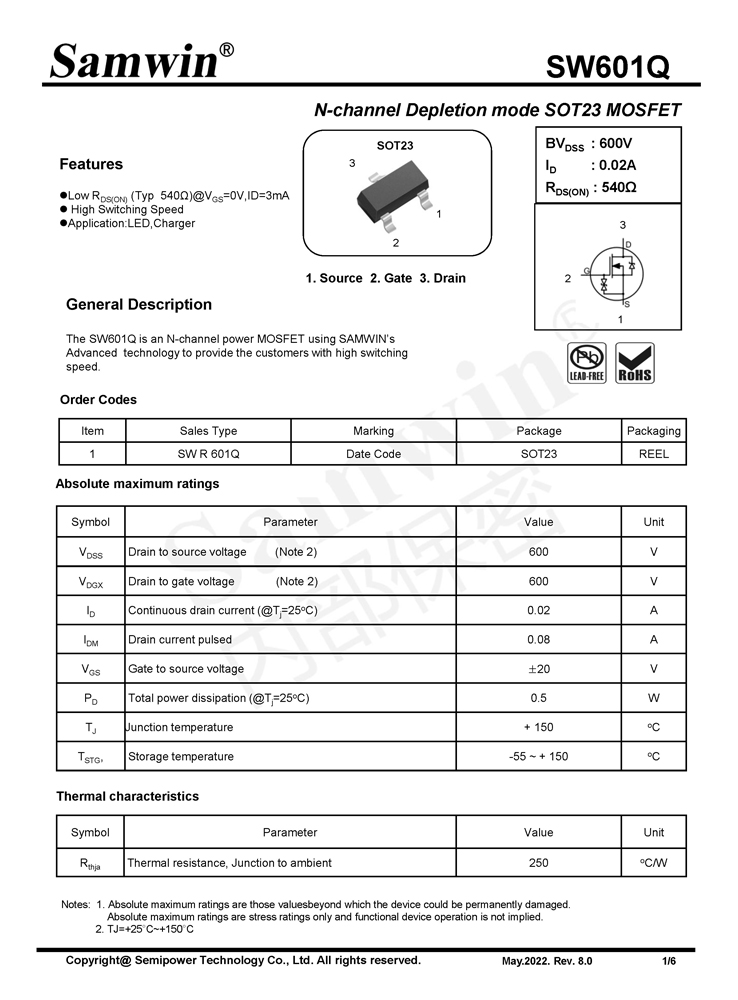

Samwin N-Channel Planar MOSFET


▍ N-channel Depletion mode SOT23 MOSFET


Features:

⚫Low RDS(ON) (Typ 540Ω)@VGS=0V,ID=3mA      ⚫ High Switching Speed      ⚫Application:LED,Charger


General Description:

The SW601Q is an N-channel power MOSFET using SAMWIN's Advanced technology to provide the customers with high switching speed.


Disclairation:

- All the data&curve within this document was tested in SEMIPOWER TESTING&APPLICATION CENTER.

- This product has passed the PCT,TC,HTRB,HTGB,HAST,PC and Solderdunk reliability testing.

- Qualification Standards can also be found on the Web site www.samwinsemi.com.

- Any advice, please send your proposal to sales@samwinsemi.com.


Contact information:

SEMIPOWER TECHNOLOGY CO., LTD.

Add:15F, A Block, Cyber Tower, Tianan Cyber Park, Futian District, Shenzhen 518042 Guangdong, China

TEL:+86-29-8825 1977, +86-755-8398 1818

Sales Dept:+86-135 1029 2288, +86-135 1028 2288

Email:sales@samwinsemi.com

http://www.samwinsemi.com
