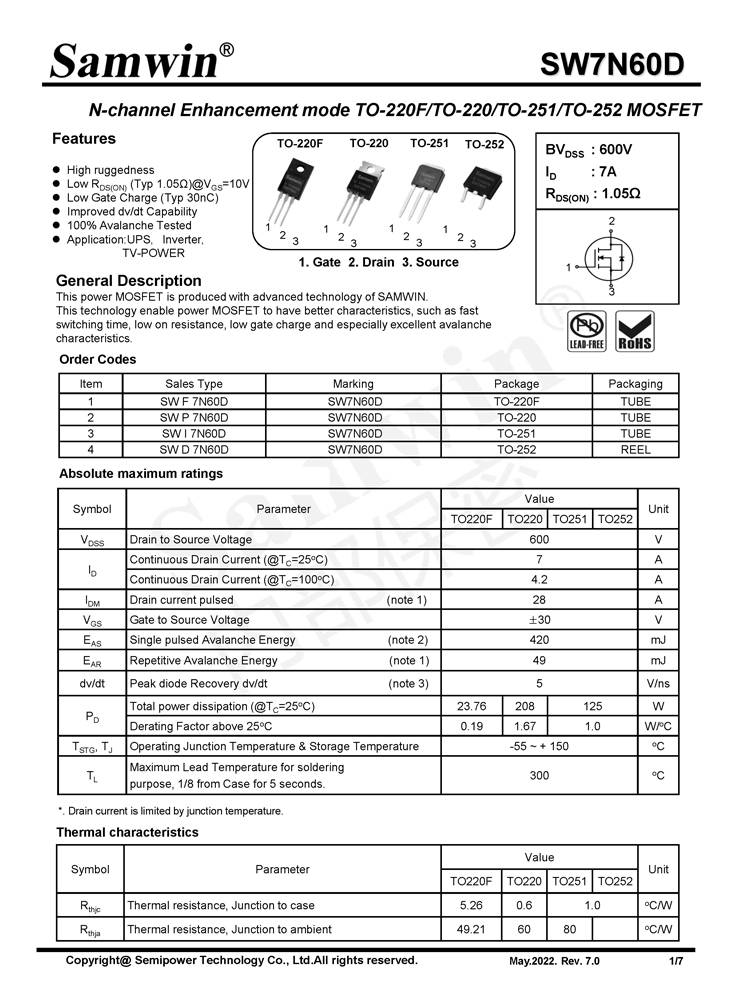

SW7N60D

Samwin N-Channel Planar MOSFET


▍ N-channel Enhancement mode TO-220F/TO-220/TO-251/TO-252 MOSFET


Features:

⚫ High ruggedness

⚫ Low RDS(ON) (Typ 1.05Ω)@VGS=10V

⚫ Low Gate Charge (Typ 30nC)

⚫ Improved dv/dt Capability

⚫ 100% Avalanche Tested

⚫ Application:UPS,Inverter,TV-POWER



General Description:

This power MOSFET is produced with advanced technology of SAMWIN.This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially xcellent avalanche characteristics.


Disclairation:

- All the data&curve within this document was tested in SEMIPOWER TESTING&APPLICATION CENTER.

- This product has passed the PCT,TC,HTRB,HTGB,HAST,PC and Solderdunk reliability testing.

- Qualification Standards can also be found on the Web site www.samwinsemi.com.

- Any advice, please send your proposal to sales@samwinsemi.com.
