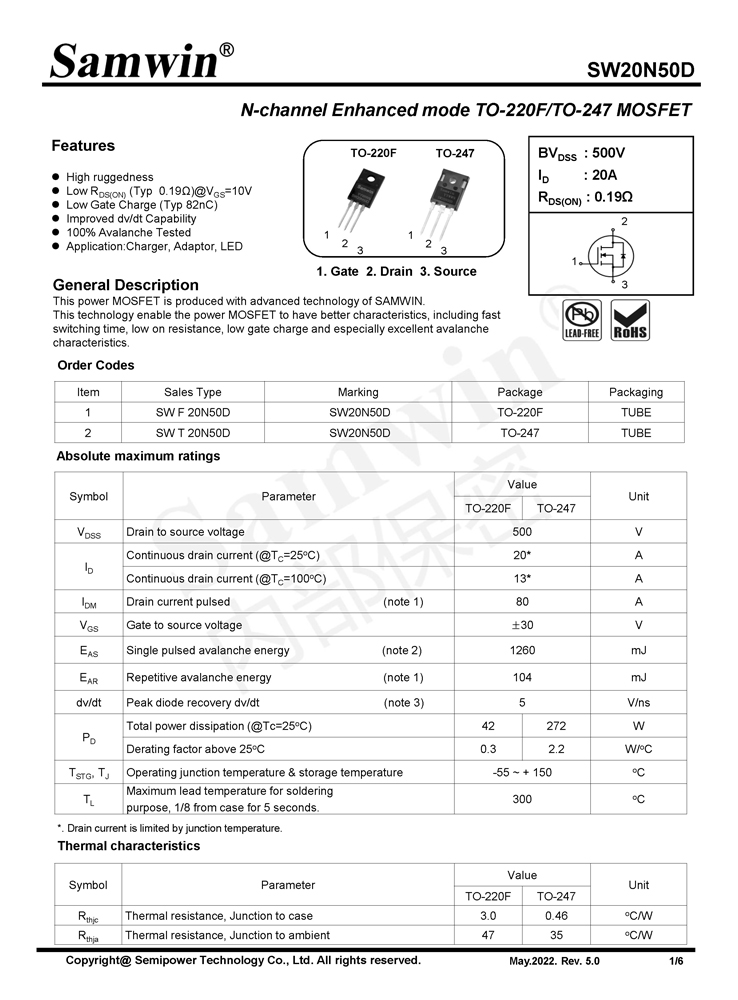

SW20N50D

Samwin N-Channel Planar MOSFET


▍ N-channel Enhanced mode TO-220F/TO-247 MOSFET


Features:

⚫ High ruggedness

⚫ Low RDS(ON) (Typ 0.19Ω)@VGS=10V

⚫ Low Gate Charge (Typ 82nC)

⚫ Improved dv/dt Capability

⚫ 100% Avalanche Tested

⚫ Application:Charger, Adaptor, LED



General Description:

This power MOSFET is produced with advanced technology of SAMWIN.This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially xcellent avalanche characteristics.
