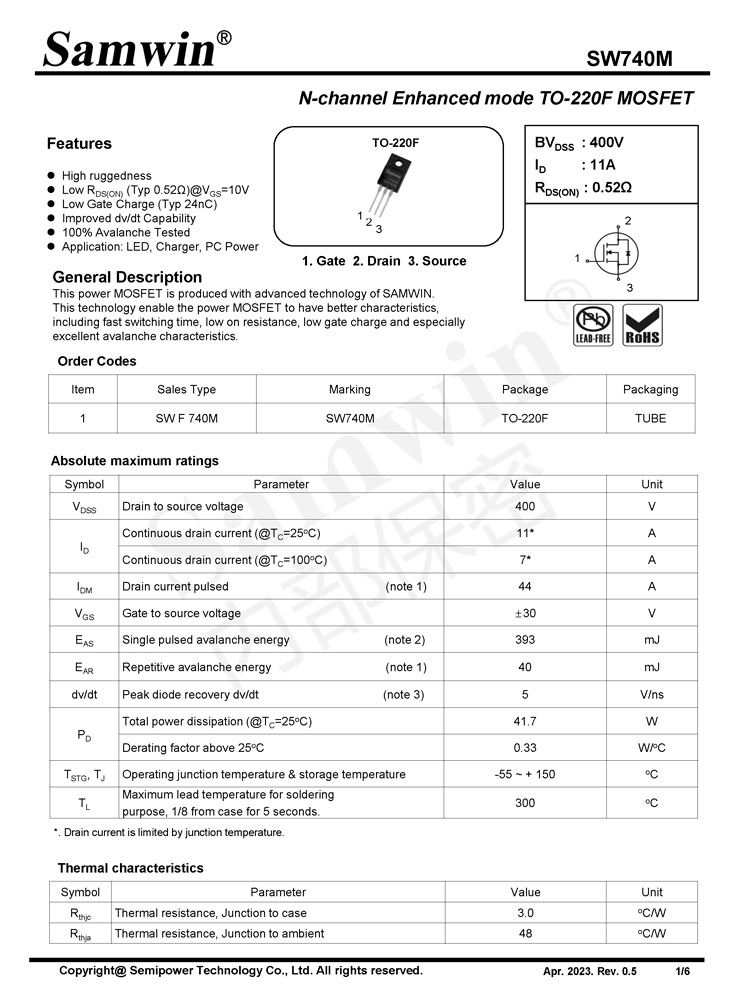

SW740M

Samwin N-Channel Planar MOSFET

Features

  • High ruggedness

  • Low RDS(ON) (Typ 0.520)@VGS=10V

  • Low Gate Charge (Typ 24nC)

  • Improved dv/dt Capability

  • 100% Avalanche Tested

  • Application: LED, Charger, PC Power


General Description

This power MOSFET is produced with advanced technology of SAMVVIN.

This technology enable the power MOSFET to have better characteristics, including fast switching time, low on resistance, low gate charge and especially excellent avalanche characteristics.


Samwin SW740M N-channel Enhanced mode TO-220F MOSFET

Samwin SW740M N-channel Enhanced mode TO-220F MOSFET

Samwin SW740M N-channel Enhanced mode TO-220F MOSFET

Samwin SW740M N-channel Enhanced mode TO-220F MOSFET

Samwin SW740M N-channel Enhanced mode TO-220F MOSFET

Samwin SW740M N-channel Enhanced mode TO-220F MOSFET
